Sigma 19 mm f/2.8 EX DN review - Vignetting

Have you rated your lenses yet?

Sigma 19 mm f/2.8 EX DN

15 May 2012

Arkadiusz Olech

8. Vignetting

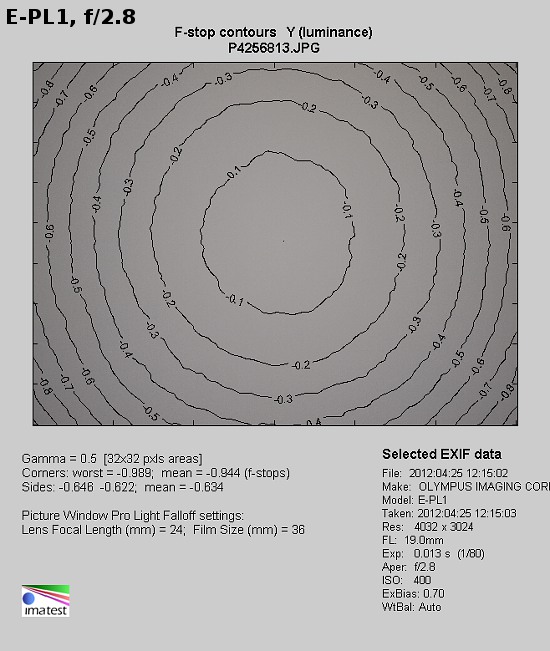

When it comes to the vignetting, let’s check first how the lens fares on the smaller Micro 4/3 sensor.

At the maximum relative aperture the vignetting is distinct although not especially high, amounting to 28% (-0.94 EV). To tell you the truth, I thought it would be higher seeing those small elements of the Sigma. The fact that stopping down the aperture has very slight influence on that aberration is a problem though. By f/4.0 the vignetting reaches the value of 21% (-0.69 EV) and by f/5.6 it is 15% (-0.48 EV). On further stopping down you can’t observe any measurable influence on the level of this aberration

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

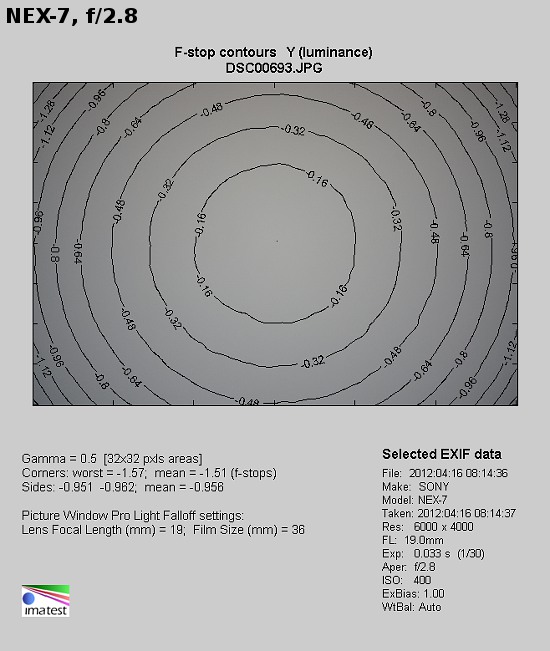

Let’s glance now at the vignetting results on the APS-C sensor.

Compared to the smaller Micro 4/3 sensor the increase of this aberration is obvious. At the maximum relative aperture the light fall-off in the frame corners amounts to as much as 41% (-1.51 EV). On stopping down the lens to f/4.0 this aberration is still significant and gets to 37% (-1.32 EV). Using the f/5.6 aperture you can make the vignetting decrease to 29% (-1.00 EV). It is still visible even by f/8.0 and f/11, where it reaches the value of 24% (-0.81 EV).
