Nikon Nikkor AF-S 58 mm f/1.4G
3. Build quality
 |

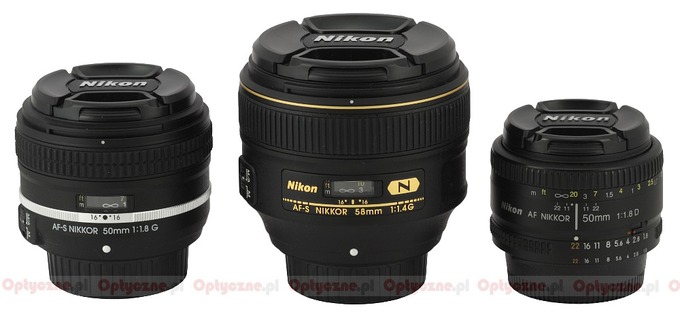

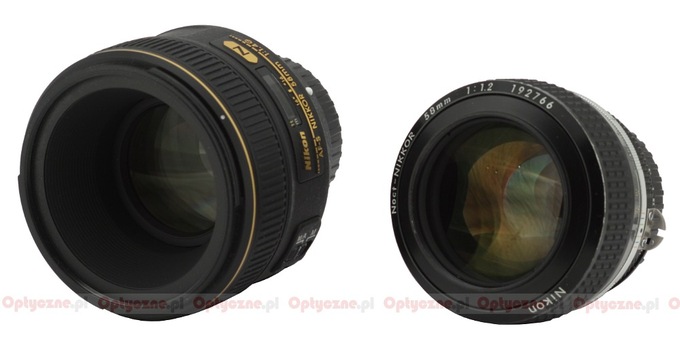

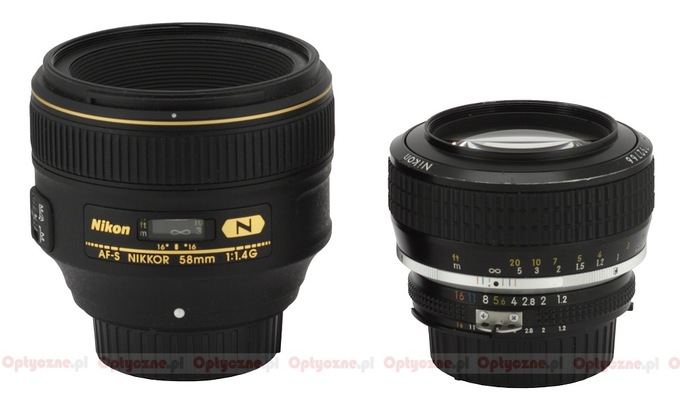

Let’s pass now to a comparison between the tested lens and its contemporary rivals – it is presented in the next chart. Here also the Nikkor lags behind other constructions when it comes to its weight – next to the Otus it practically looks tiny. What’s more, its minimum focus is the worst of all, even worse than that of its manual predecessors, which were able to focus already from 0.5 of a meter.
Please Support UsIf you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free. |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 |

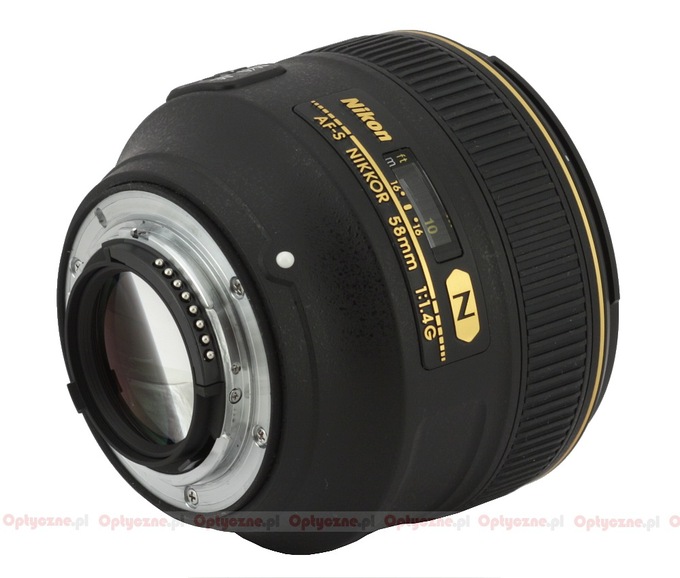

The Nikkor AF-S 58 mm f/1.4G starts with a metal mount with contacts and a rear element, 31 mm in diameter. It is situated on the same level as the contacts when the focus is set at infinity. As you pass to the minimum focus the element hides inside the casing almost 0.5 cm deep. The surrounding area is ribbed and properly blackened, without any gaps or electronics parts visible – it should guarantee no dust will be sucked inside the construction.
 |

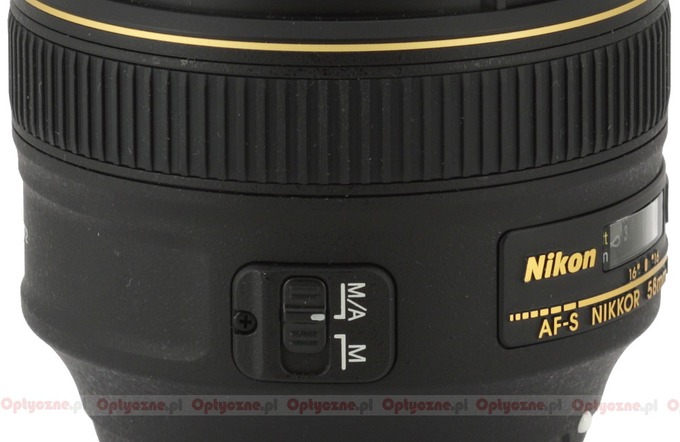

The proper body of the lens is covered by black plastics. Right by the mount you find a white dot, making the alignment with a camera easier. Then the diameter of the lens increases rapidly and, as soon as it reaches its maximum, it features other parts of the device. Straight on there is a plate with the name and the parameters and a distance scale behind a window, expressed in meters and feet. Underneath you can find depth of field markings but only by f/16 so moderately useful. On the left there is a focusing mechanism mode switch (M/A-M) and, on the other side from the scale, a serial number of the lens and more info concerning the use of an SWM motor, Nano Crystal coatings and the size of the filter which is 72 mm in diameter. The lens was produced in Japan.
 |
The next part of the casing is a ribbed manual focus ring, 17 mm wide. Lately many manual focus rings of Nikkors we’ve tested had a very annoying slack so we checked that feature of the expensive Nikkor 1.4/58G paying extra attention to it. There is some slack but really slight, not causing any discomfort. The ring itself moves smoothly and is well-damped in the whole range. In order to pass from infinity to the minimum focusing distance you have to turn it through about 130 degrees. For a device equipped with an autofocus it is a sensible value.
 |
The front of the lens features a hood thread, a non-rotating filter thread, 72 mm in diameter, and a front element which is almost 4 cm in diameter and hidden deep inside the casing. It moves during the focusing, being hidden the deepest (about 3 cm) when the scale is set at infinity.
 |

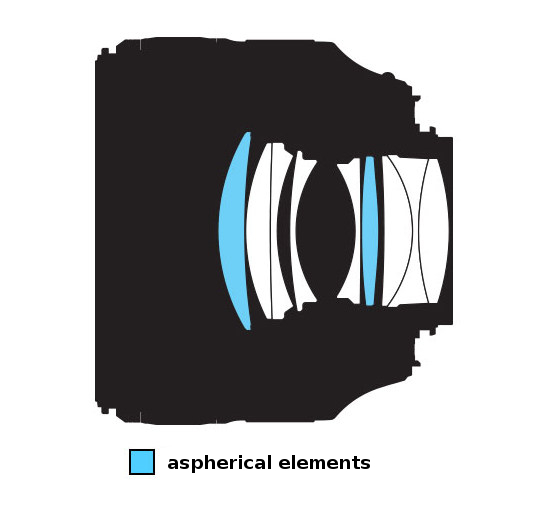

The inner construction consists of 9 elements positioned in 6 groups. Two elements are aspherical. The producer doesn’t boast of using elements made of either low dispersion glass or glass with low diffraction index. There is also a rounded aperture with nine diaphragm blades which can be closed down to f/16.

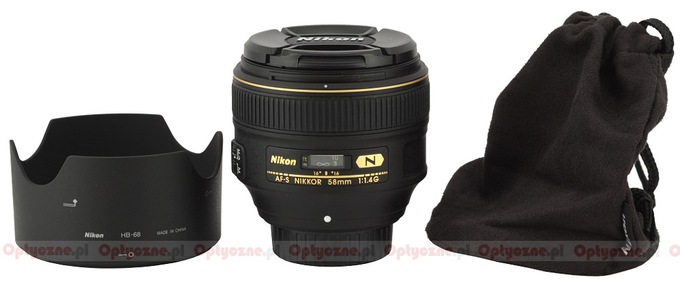

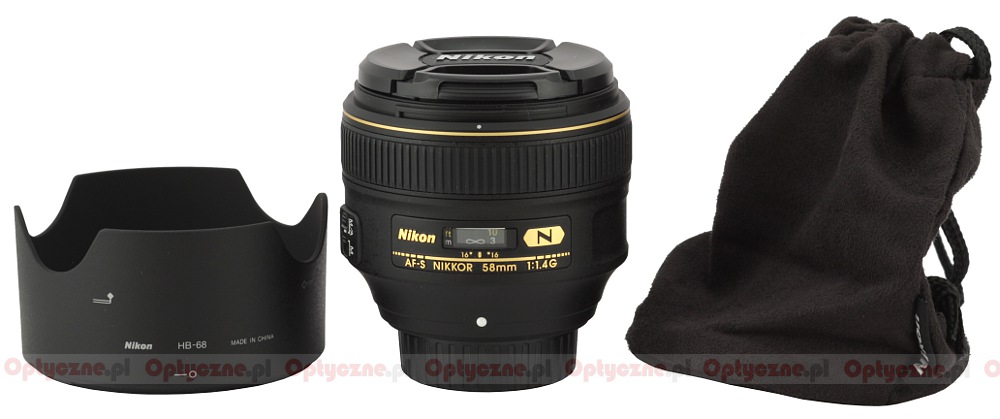

Buyers get both caps, a hood and a soft pouch in the box.
 |
