Panasonic Leica DG Summilux 15 mm f/1.7 ASPH review - Vignetting

Have you rated your lenses yet?

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH

6 August 2014

Arkadiusz Olech

8. Vignetting

On the one hand you deal here with a small Micro 4/3 sensor, on the other hand the lens is quite fast aperture-wise and its dimensions are small. Those two last features seemed to be prevalent and, as a result, you can’t say the vignetting is corrected well.

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Vignetting

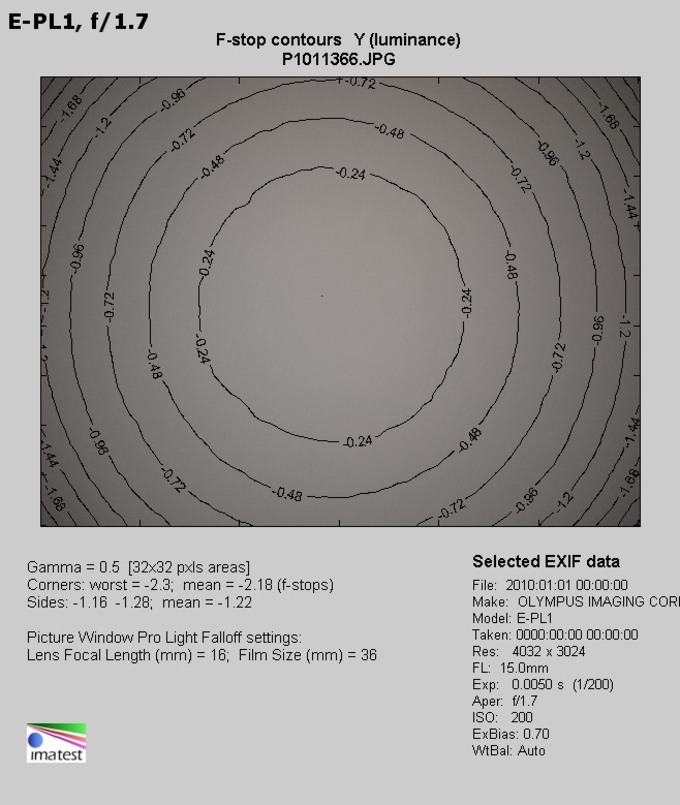

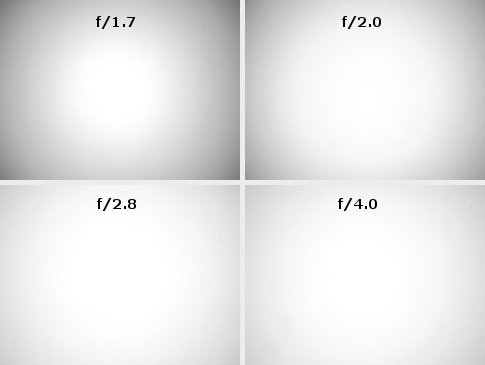

At the maximum relative aperture the vignetting is as high as 53% (-2.18 EV) so very distinct. Huge problems are to be experienced by f/2.0 where the brightness loss in the corners amounts to 40% (-1.49 EV). A quite moderate level appears only by f/2.8 where the vignetting gets to 22% (-0.73 EV). By f/4.0 aperture and higher you deal with a level of 21% (-0.73 EV).

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Olympus E-PL1 camera we used in our test didn’t correct the vignetting on JPEG files so RAW and JPEG results are pretty much similar, with differences between both never exceeding 3-4%.
