Tamron 70-180 mm f/2.8 Di III VC VXD G2
8. Vignetting

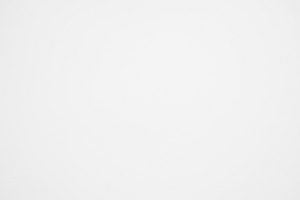

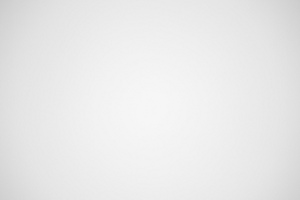

| A7R IIIa, APS-C, 70 mm, f/2.8 | A7R IIIa, APS-C, 70 mm, f/4.0 |
|
|

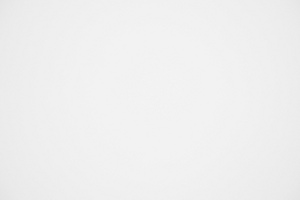

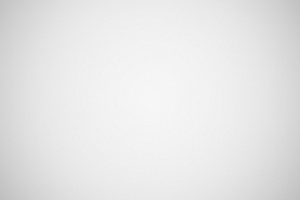

| A7R IIIa, APS-C, 125 mm, f/2.8 | A7R IIIa, APS-C, 125 mm, f/4.0 |
|
|

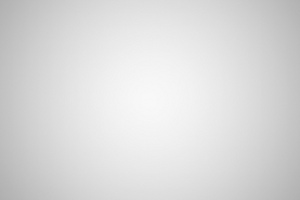

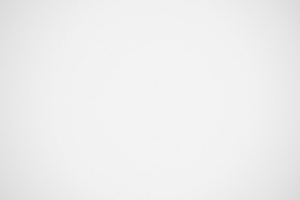

| A7R IIIa, APS-C, 180 mm, f/2.8 | A7R IIIa, APS-C, 180 mm, f/4.0 |
|
|
In this case there are no problems at any focal length. If you apply the widest angle of view available and the f/2.8 aperture you have to take into account the loss of just 16% (−0.51 EV) of light in frame corners. The problem disappears practically completely by f/4.0, where vignetting reaches just 4% (−0.13 EV).
Please Support UsIf you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free. |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The middle of the focal range is a bit weaker. By f/2.8 and f/4.0 we got the following results: 21% (−0.69 EV), and 5% (−0.16 EV) respectively. By f/5.6 vignetting decreases even more, this time to a negligible value of 3% (-0.10 EV).
At the maximum focal length and maximum relative aperture vignetting amounts to 29% (−0.53 EV) and decreases to an imperceptible level of 10% (−0.31 EV) on stopping down the aperture to f/4.0 and to just 3% (-0.10 EV) on stopping down to f/5.6.
Let's check how the tested lens deal with this aberration on full frame – appropriate photos can be found below.

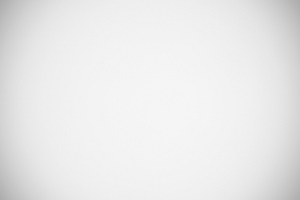

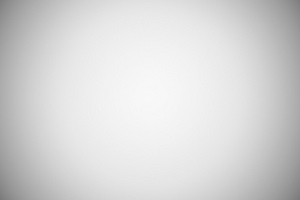

| A7R IIIa, FF, 70 mm, f/2.8 | A7R IIIa, FF, 70 mm, f/4.0 |
|
|

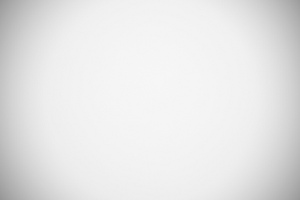

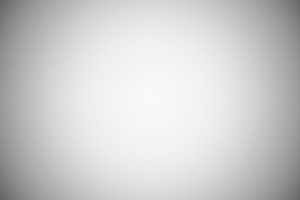

| A7R IIIa, FF, 125 mm, f/2.8 | A7R IIIa, FF, 125 mm, f/4.0 |
|
|

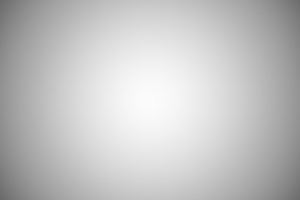

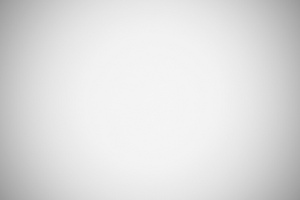

| A7R IIIa, FF, 180 mm, f/2.8 | A7R IIIa, FF, 180 mm, f/4.0 |
|
|

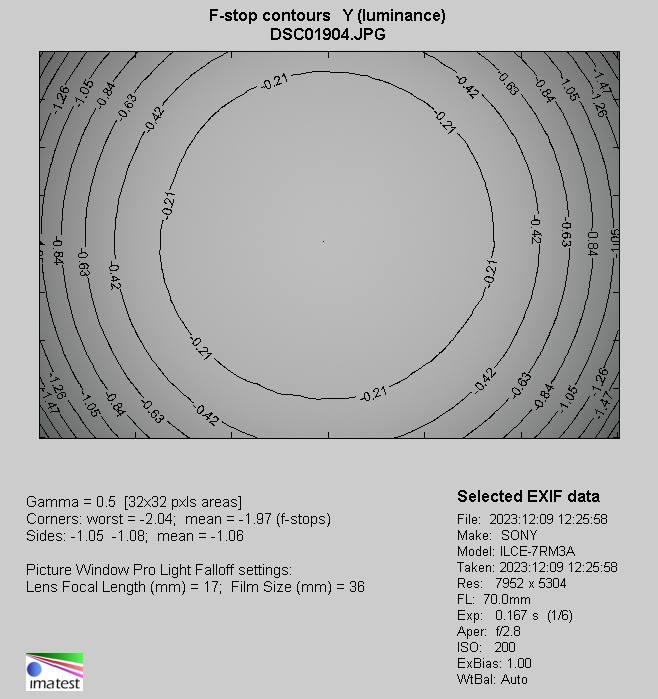

At the combination of the 70 mm focal length and f/2.8 aperture problems are clearly visible, with vignetting reaching 49% (−1.97 EV). By f/4.0 vignetting decreases to 29% (−1.01 EV), and by f/5.6 it drops further to 13% (−0.42 EV), and by f/8.0 to 9% (−0.26 EV). Further stopping down doesn't produce any measurable effects.

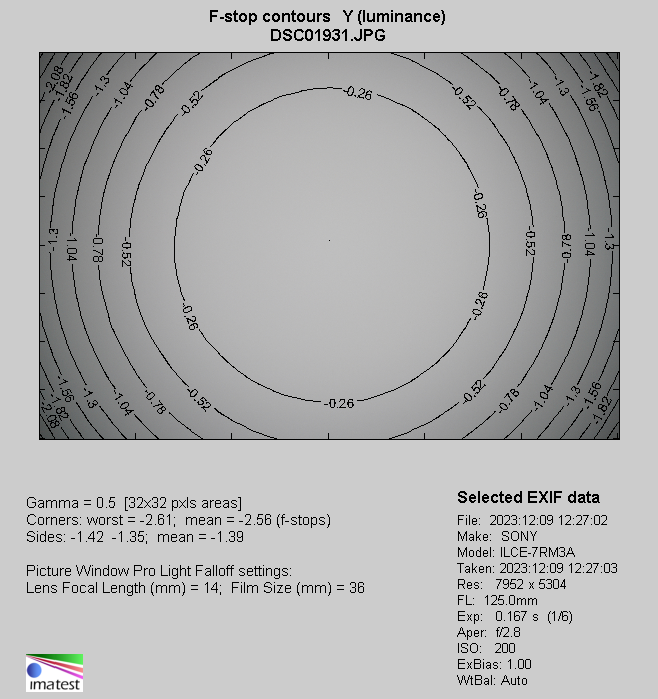

In the middle of the focal range you can notice a slight worsening of the performance. By f/2.8 brightness loss in frame corners amounts to 59% (−2.56 EV) and it decreases to 37% (−1.35 EV) on stopping down the aperture to f/4.0. By f/5.6 and f/8.0 apertures we got the following results: 21% (−0.68 EV) and 13% (−0.41EV) respectively. This aberration becomes completely imperceptible only by f/11.0, where it reaches 9% (-0.28 EV).

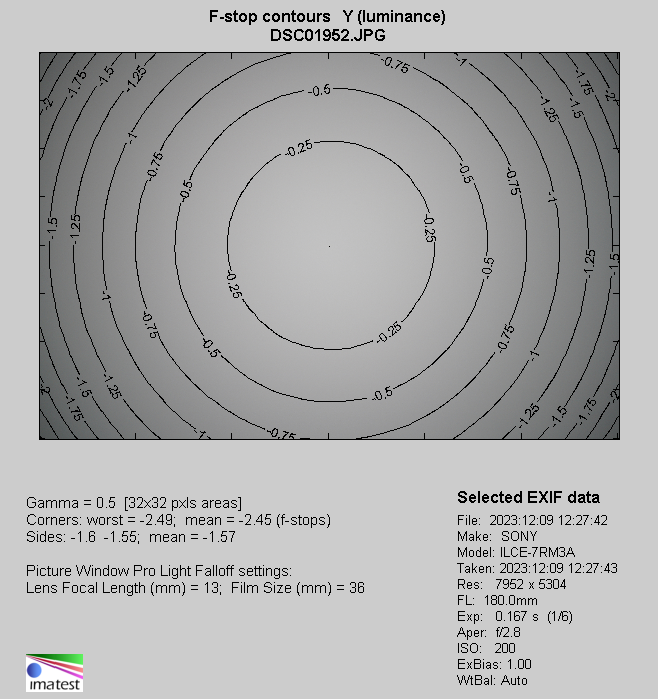

At 180 mm focal length we see similar results to the ones in the middle of the range: at the maximum relative aperture vignetting amounts to 57% (−2.45 EV), by f/4.0 it drops to 37% (−1.34 EV), and by f/5.6 it decreases to 19% (−0.62 EV). By f/8.0 and f/11.0 we got the following results: 11% (−0.35 EV) and 8% (−0.25 EV) respectively.
In this category the Tamron performed weaker than the more expensive Sony model which, at the maximum relative aperture, showed vignetting from 42 to 46% and it depended weakly on the focal length you used.
| Sony A7R IIIa, 70 mm, f/2.8 |
 |
| Sony A7R IIIa, 125 mm, f/2.8 |
 |
| Sony A7R IIIa, 180 mm, f/2.8 |
 |
