8. Vignetting

The thumbnails, posted below, allow you to assess the vignetting level of the Nikkor AF-S DX 18-140 mm f/3.5-5.6 ED VR.

Nikon Nikkor AF-S DX 18-140 mm f/3.5-5.6G ED VR - Vignetting

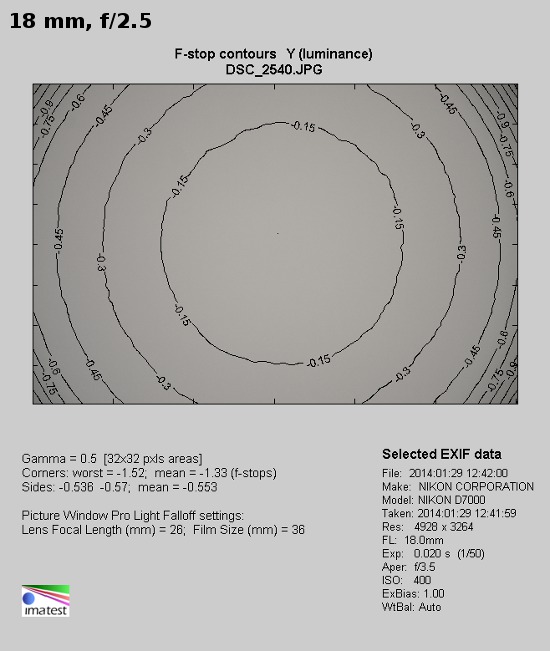

The biggest problems are situated at both ends of focal range. At 18 mm and at the maximum relative aperture the relative light fall-off in the frame corners amounts to 37% (-1.33 EV) which is a significant value. By f/4.0 that aberration decreases to 32% (-1.11 EV) and by f/5.6 it reaches 18% (-0.58 EV). By f/8.0 aperture and the next ones the vignetting is 12% (-0.37 EV).

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

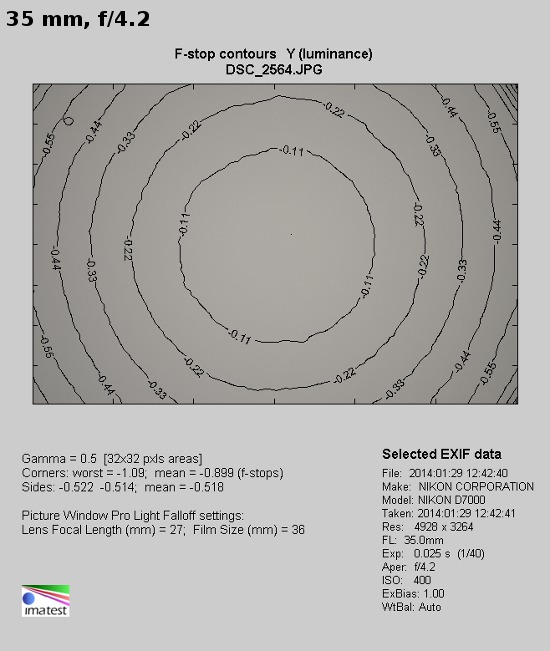

The problem becomes moderate at 35 mm where, at the maximum relative aperture, the vignetting reaches 27% (−0.90 EV). By f/5.6 it decreases to 18% (-0.58 EV) and for f/8.0 and f/11.0 it becomes imperceptible, amounting to, respectively, 11% (−0.33 EV) and 8% (−0.25 EV).

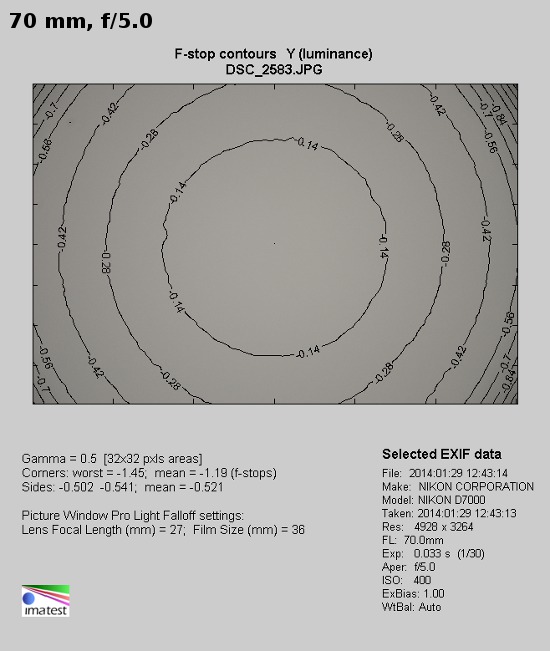

The aberration, described here, starts increasing as the focal length get bigger. At 70 mm, with the lens wide open, you must take into account 34% of brightness loss in the corners (-1.19 EV). By f/5.6 you notice just a slight decrease to 30% (-1.04 EV) and by f/8.0 you get a value of 16% (-0.49 EV). The aberration disappears almost completely by f/11 where it is just 7% (-0.21 EV).

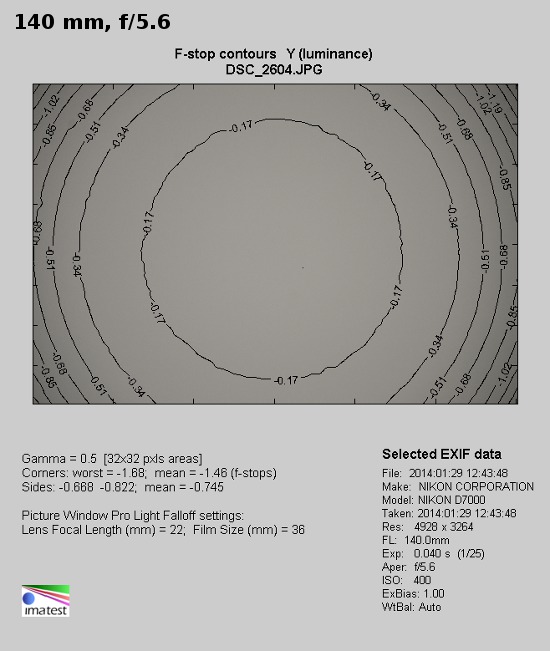

The highest vignetting level we observed for the longest focal length and the maximum relative aperture – it reached a value of 39% (−1.46 EV) there. On stopping down the lens to f/8.0 that aberration decreased to 21% (−0.70 EV), and by f/11 it became imperceptible (8%).

Although the results of the Nikkor 18–140 mm VR are perhaps not exactly impressive in this category, still it fares noticeably better than the cheaper Nikkor 18-105 mm VR which could have the maximum vignetting on a level of even 52%.
