Samyang AF 24-70 mm f/2.8 FE review - Distortion

Have you rated your lenses yet?

Samyang AF 24-70 mm f/2.8 FE

2 June 2023

Maciej Latałło

6. Distortion

At first, let's deal with distortion on the smaller APS-C sensor. In case of the 24 mm focal length you have to take into account the presence of slight but noticeable barrel variant, amounting to −2.33%. At 35 mm the deformations become practically zero, with the official result of −0.22%, then distortion changes sign and at 50 mm you deal with pincushion of +0.66% that increases to +0.78% after passing to the maximum focal length.

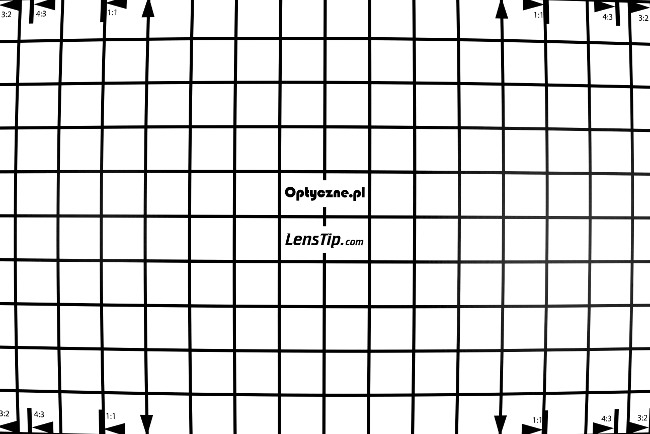

Sony A7R III, APS-C, 24 mm

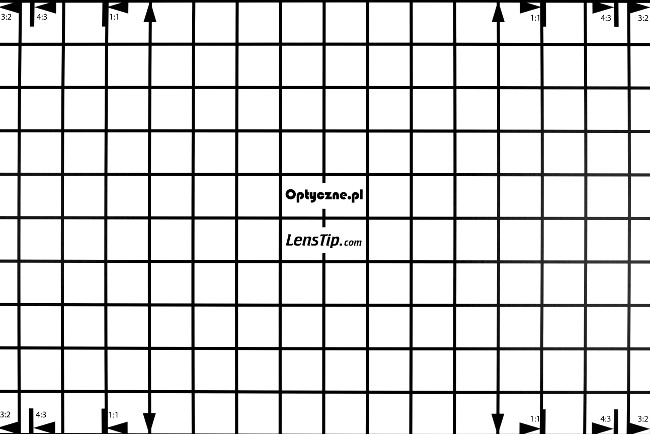

Sony A7R III, APS-C, 35 mm

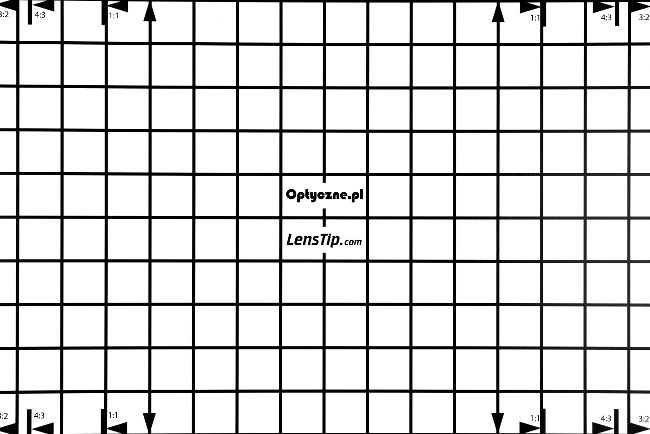

Sony A7R III, APS-C, 50 mm

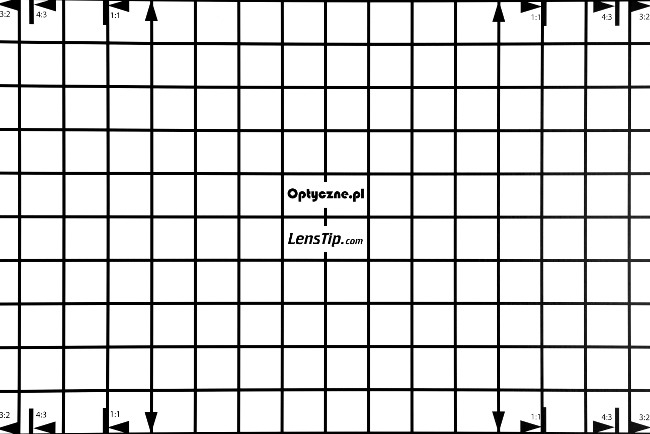

Sony A7R III, APS-C, 70 mm

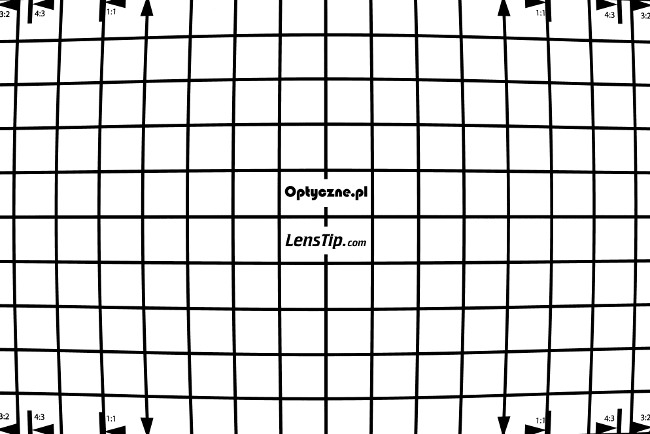

In case of full frame there are much more problems. At the 24 mm focal length barrel distortion is perhaps not so very high, amounting to −3.90%, but that result is decreased by moustache deformations. If you limit your measurements to the 1:1 marking area, where you cannot notice any deformations of straight lines caused by moustache distortion, our result increases to −4.61%. It is not a way of dealing with distortion but we must also say that here the Samyang performs much better than the Sigma, which result, averaged out across the frame, reached −4.56%; in the area limited by 1:1 markings it even approached −6.47%.

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

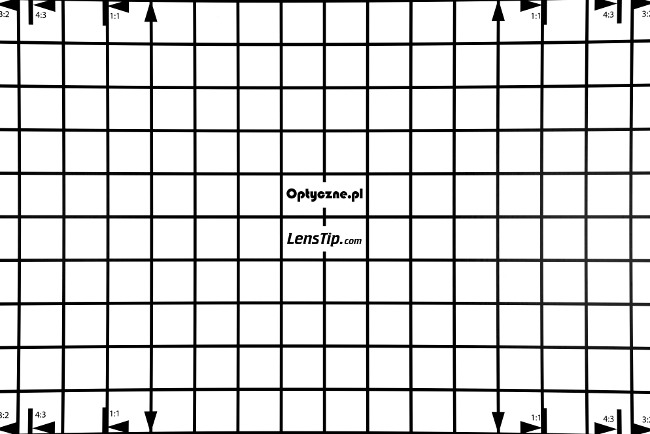

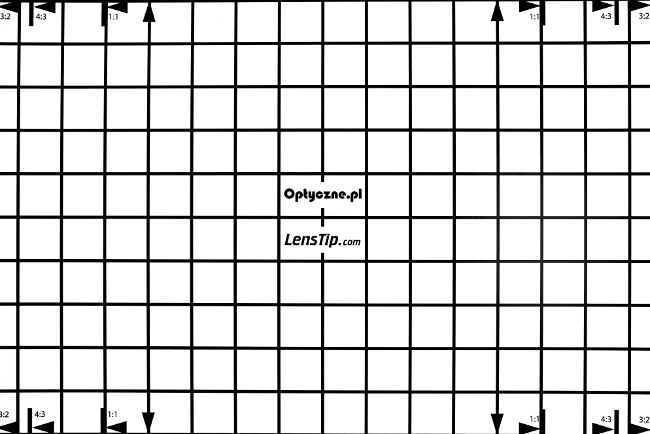

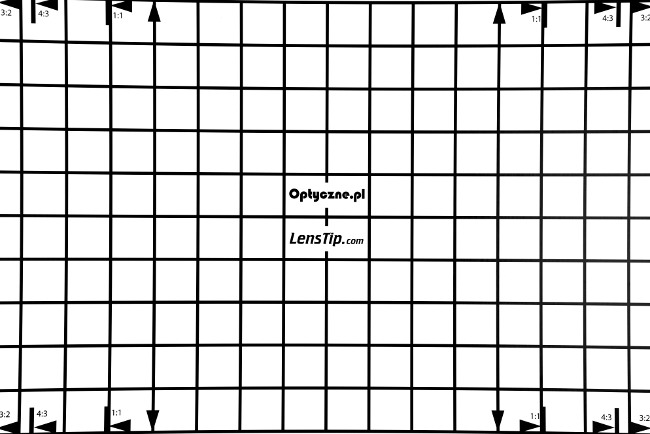

Distortion again becomes zero near the 35 mm focal length where we got -0.15%. Then it changes the sign and at 50 and 70 mm you deal with the following results: +1.69% and +1.75% respectively. They are a tad higher than the results of the Sigma for a change as that lens in the same category got +0.94% and +1.32% respectively.
