8. Vignetting

The following thumbnails show the vignetting performance of the tested lens by f/2.8 and f/4.0 on the sensor of the Canon 50D.

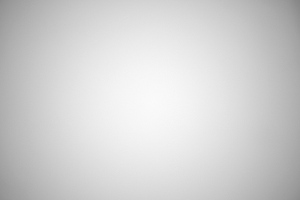

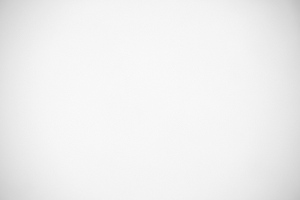

Canon 50D, 35 mm, f/2.8 Canon 50D, 35 mm, f/4.0
Canon EF-S 35 mm f/2.8 Macro IS STM - Vignetting Canon EF-S 35 mm f/2.8 Macro IS STM - Vignetting

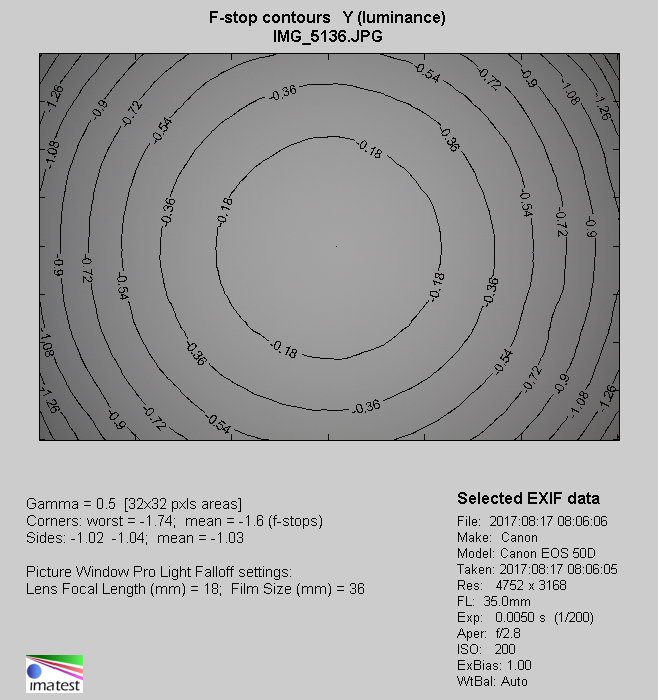

At the maximum relative aperture the brightness loss in the frame corners amounts to 26% (−1.60 EV). We think it is a moderate value, exactly the same as in the case of the Tokina but distinctively better than the performance of the Nikkor which vignetting level was about 39%.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

On stopping down the aperture to f/4.0 the vignetting decreases to 19% (−0.62 EV), and by f/5.6 it becomes completely imperceptible, dropping to 8% (−0.24 EV).

Canon 50D, JPEG, f/2.8
Canon EF-S 35 mm f/2.8 Macro IS STM - Vignetting
